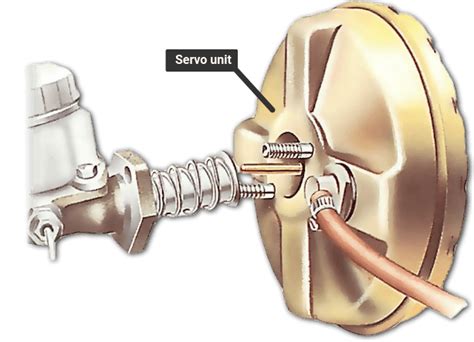

Replacing a brake servo, a crucial component in your vehicle’s braking system, demands precision and a methodical approach. This seemingly complex task, often relegated to professional mechanics, can be tackled with careful planning and the right tools. Ignoring a failing servo can lead to significantly reduced braking performance, jeopardizing both your safety and that of others on the road. Therefore, understanding the intricacies of this repair is paramount, even for those with limited automotive experience. This comprehensive guide will walk you through each step of the process, providing clear instructions and safety precautions to ensure a successful and safe replacement. We’ll address everything from properly disconnecting the vacuum lines and hydraulic connections to securely mounting the new servo and bleeding the braking system to restore optimal functionality. Furthermore, we will explore the common causes of servo failure, helping you understand why preventative maintenance is essential in preserving the longevity of this vital component. Finally, this guide will equip you with the knowledge to distinguish between a failing servo and other potential brake system issues, preventing unnecessary repairs and saving both time and money. Understanding the nuances of brake system mechanics empowers you to make informed decisions about maintaining your vehicle’s safety.
Firstly, before commencing any work, ensure the vehicle is securely parked on a level surface with the parking brake engaged. Safety is paramount; therefore, disconnect the negative terminal of the battery to prevent accidental electrical shorts. Subsequently, locate the brake servo, typically situated near the firewall, and visually inspect it for any obvious signs of damage or leaks. This visual inspection is crucial as it can inform your further actions. Next, carefully disconnect the vacuum hose leading to the servo, using a suitable hose clamp remover to prevent damage to the hose. Remember to mark the orientation of the hose before disconnecting to facilitate accurate reconnection later. Simultaneously, release the hydraulic connections to the brake master cylinder, utilizing a suitable wrench to avoid stripping the bolts. It is advisable to place a container underneath to collect any residual brake fluid. This fluid is corrosive, so it’s important to handle it carefully and dispose of it responsibly. Once the vacuum and hydraulic lines are disconnected, you can carefully remove the retaining bolts securing the servo to the vehicle’s chassis. Here, a ratchet and socket set will be invaluable. Take care not to drop any bolts or components into hidden recesses, which can significantly complicate the reassembly process. Furthermore, it’s strongly recommended to take detailed photographs during each stage of the disassembly, providing a valuable reference for reinstallation. This methodical approach ensures a smooth and efficient replacement.
Following the removal of the old brake servo, it’s time to install the new one. Carefully compare the new servo to the old one to ensure they are identical, verifying part numbers if necessary. Reverse the disassembly process, ensuring that all connections are made securely and in their proper place. Begin by mounting the new servo to the chassis, using the same bolts and tightening them to the manufacturer’s specified torque. Next, reconnect the hydraulic lines to the master cylinder, ensuring a firm, leak-free connection. Finally, reattach the vacuum hose, referencing your earlier markings to ensure correct orientation. After reconnection, carefully bleed the braking system to remove any air that may have entered during the replacement. This is crucial to restore full braking efficiency. This process typically involves opening a bleed valve at each wheel, while an assistant pumps the brake pedal. Look for a firm pedal and the absence of air bubbles in the fluid, indicating a successful bleed. Finally, reconnect the battery’s negative terminal and test the brakes thoroughly before driving. A test drive on a safe, controlled environment, free from traffic, is essential to confirm the effectiveness of the replacement. Remember, if you are uncertain about any aspect of this procedure, it’s always advisable to consult a qualified mechanic. Safety should always be your primary concern.
Assessing the Need for Brake Servo Replacement
Signs Your Brake Servo Might Need Replacing
Before you even think about wrenching on your car’s braking system, it’s crucial to understand if a brake servo replacement is truly necessary. Replacing a brake servo isn’t a trivial task; it involves working with the braking system, a critical safety component. Therefore, accurate diagnosis is paramount. Jumping straight to replacement without proper assessment could be costly and potentially dangerous. Let’s look at some key indicators that might point towards a failing brake servo.
Spongy or Soft Brake Pedal
One of the most common signs of a failing brake servo is a spongy or soft brake pedal. Instead of firm resistance when you press the brake pedal, you’ll feel a mushy or unresponsive feel. This indicates a loss of vacuum assistance from the servo, meaning you’re relying solely on the mechanical force of your leg to engage the brakes. This results in significantly longer braking distances and greatly reduced braking effectiveness, which is a serious safety concern.
Increased Pedal Travel
Related to the spongy pedal feeling, you might also notice that you need to push the brake pedal further down than usual to achieve the same level of braking force. This increased pedal travel is directly linked to the reduced vacuum assistance. The harder you have to push, the less effective the brakes are working and the more potentially hazardous your driving experience becomes.
Hard Brake Pedal
While a soft pedal is typical, a hard pedal can also indicate servo problems, but often for different reasons. A hard brake pedal might suggest a vacuum leak elsewhere in the system, preventing the servo from building up the necessary vacuum. This will result in the vehicle’s braking feeling significantly heavier to use, requiring much more effort on the driver’s behalf.
Unusual Noises
While not always a direct indicator, unusual noises emanating from the brake area, particularly a hissing or whooshing sound, might signify a leak in the vacuum system connected to the brake servo. These sounds can often be heard when the brakes are engaged or disengaged. Pay close attention to any atypical sounds and seek professional assessment if you are unsure of the source.
Brake Warning Light
A consistently illuminated brake warning light on your dashboard is a critical warning that should never be ignored. Although it can indicate various issues, including low brake fluid, it’s frequently associated with problems in the braking system, including potential brake servo issues. This warrants immediate attention from a qualified mechanic.
Diagnostic Checklist for Brake Servo Problems
Before committing to a replacement, a thorough diagnostic check is essential. It’s best to have a qualified mechanic carry out these tests, but here is a summary of the common tests involved.
| Test | Description | Indication of Servo Problem |
|---|---|---|
| Visual Inspection | Check for leaks, cracks, or damage to the servo and associated vacuum lines. | Visible damage or leaks point to the need for replacement. |
| Vacuum Test | Measure the vacuum level in the servo system. | Low vacuum readings indicate a problem with the servo or the vacuum system. |
| Brake Pedal Feel Test | Assess the feel of the brake pedal – is it spongy, hard, or normal? | Spongy or hard pedals often suggest servo issues. |
Remember, your braking system is paramount to your safety and the safety of others on the road. If you suspect any problems with your brake servo, don’t delay seeking professional advice.
Gathering Necessary Tools and Parts
Essential Tools for the Job
Before you even think about tackling your brake servo replacement, gather all the necessary tools. This will make the job flow smoothly and prevent frustrating delays. A well-stocked toolbox is your best friend here. You’ll need the standard set of wrenches (both metric and SAE, depending on your vehicle), sockets, and ratchets. A good quality torque wrench is absolutely critical; improperly torqued bolts can lead to leaks or even brake failure, so don’t skip this. A breaker bar might be helpful for stubborn bolts.
Beyond the basic hand tools, you’ll need some specialized items. A brake bleed kit is essential for removing air from the brake lines after the servo is reinstalled. This typically includes a clear hose, a container to catch the old brake fluid, and possibly a pressure bleeder for a more efficient bleed. You’ll also need a suitable container for safely disposing of the old brake fluid; it’s corrosive and needs to be handled properly. Don’t forget safety glasses and gloves – brake fluid is nasty stuff, and you want to protect yourself from potential splashes. Consider having a shop rag or two readily available for cleaning up spills. A jack and jack stands are indispensable for safely lifting your vehicle and providing stable support during the repair. Wheel chocks are a crucial safety element to prevent the vehicle from rolling.
Gathering the Correct Parts
Replacing the brake servo requires obtaining the correct replacement part. This is not a situation where you can improvise. The wrong part will not only not work but could also compromise your braking system. To ensure you have the correct part, you need your vehicle’s make, model, and year. This information is usually found on your vehicle’s registration or the driver’s side dashboard. Using this information, you can locate the correct brake servo from a reputable parts supplier such as a local auto parts store or an online retailer.
When ordering or purchasing your brake servo, double-check the part number against your vehicle’s specifications. A slight variation in part number can mean a significant difference in compatibility, potentially leading to a failed installation. Some servos come with mounting hardware, but it’s always wise to inspect what’s included and make a note of any additional fasteners you might need. It’s highly advisable to replace the brake fluid as a part of this maintenance operation. Brake fluid degrades over time, and fresh fluid will improve your braking performance. Check your vehicle’s specifications to determine the correct type and quantity of brake fluid. Consider having a new vacuum hose, also known as a vacuum pipe on hand. It would be very prudent to replace this as this is a commonly failed component in the vacuum braking circuit.
Parts and Tools Checklist
Here’s a handy checklist to ensure you have everything you need before you begin:
| Category | Item | Notes |
|---|---|---|
| Tools | Wrenches (Metric and SAE) | Various sizes |
| Tools | Sockets and Ratchets | Matching sizes to your wrenches |
| Tools | Torque Wrench | Essential for correct tightening |
| Tools | Breaker Bar | For stubborn bolts |
| Tools | Brake Bleed Kit | Includes hose, container, and possibly a pressure bleeder |
| Tools | Jack and Jack Stands | For safe vehicle lifting |
| Tools | Wheel Chocks | For safety |
| Tools | Safety Glasses and Gloves | Protect yourself from brake fluid |
| Parts | Replacement Brake Servo | Correct part number for your vehicle |
| Parts | New Brake Fluid | Correct type for your vehicle |
| Parts | New Vacuum Hose | If required |
Safely Disconnecting the Vehicle’s Battery
Understanding the Importance of Disconnecting the Battery
Before you even think about touching a brake servo, it’s crucial to disconnect the vehicle’s battery. This isn’t just a safety precaution; it’s an absolute necessity. Modern vehicles are packed with sophisticated electronics, and accidentally short-circuiting a system while working on the braking system could lead to serious damage, costly repairs, or even personal injury. Disconnecting the battery eliminates the risk of electrical shocks and prevents unintended activation of components that might interfere with your work, such as the power brake system itself. Remember, working on a brake system is inherently risky, and any measure we can take to minimize danger is vital.
Locating and Identifying the Battery
Most car batteries are easily accessible under the hood, usually secured in a tray. However, some vehicles may have them located in the trunk or even under the rear passenger seat. Consult your vehicle’s owner’s manual to confirm the exact location. Once you’ve found the battery, take a moment to familiarize yourself with its components. You’ll be working with the positive (+) and negative (-) terminals. The positive terminal is usually marked with a “+” symbol, often red in color, and the negative terminal is marked with a “-” symbol, usually black. These terminals are where the battery cables connect. Before you proceed, note the exact position of the battery cables, as this will be important when reconnecting everything later. A photograph could be very helpful.
The Step-by-Step Process of Disconnecting the Battery
Disconnecting a car battery is a straightforward process, but careful attention to detail is crucial to avoid any mishaps. First, gather the necessary tools: a wrench (usually a 10mm or 13mm, but check your vehicle’s specifications) that fits the battery terminal nuts. Some may prefer to use a socket wrench for better grip and leverage.
Before you touch anything, ensure the vehicle’s ignition is switched off. This step seems obvious, but it’s worth mentioning as a safety precaution. Next, locate the negative (-) terminal. This is crucial; always disconnect the negative terminal first. This helps to prevent accidental short-circuiting. Using your wrench, carefully loosen the nut securing the negative cable clamp to the terminal. Once loose, gently remove the cable clamp. Set it aside in a safe place, away from the battery and any metal parts of the engine bay.
Now, repeat the process for the positive (+) terminal. Loosen and remove the nut and cable clamp from the positive terminal. Once both cables are removed, keep them away from the battery and each other to prevent accidental contact. It’s a good idea to place the cables on a non-conductive surface, like a piece of wood or rubber, to prevent grounding. Finally, if there are any other accessories connected to the battery, such as a jump starter port cover, it’s recommended to disconnect those too.
It is highly recommended to always wear safety glasses when working with car batteries to prevent accidental eye injuries from potential splashes of acid or sparks. Consider wearing gloves as well to protect your hands.
| Step | Action | Safety Precaution |
|---|---|---|
| 1 | Switch off the ignition. | Avoid accidental short circuits. |
| 2 | Locate the negative (-) terminal. | Always disconnect negative first. |
| 3 | Loosen and remove the negative cable clamp. | Use appropriate wrench and take your time. |
| 4 | Loosen and remove the positive (+) cable clamp. | Keep cables away from each other and metal parts. |
| 5 | Place cables on a non-conductive surface. | Prevent accidental grounding and short circuits. |
By following these steps meticulously, you can safely disconnect your vehicle’s battery, ensuring a safer working environment when undertaking tasks like brake servo replacement.
Removing the Old Brake Servo Unit
Disconnecting the Vacuum Hose and Electrical Connections
Before you even think about touching any bolts, safety first! Ensure your vehicle is securely parked on a level surface and the handbrake is firmly engaged. Now, locate the vacuum hose connected to the brake servo. This hose carries the engine’s vacuum to assist braking. Carefully detach the hose by gently squeezing the retaining clips or using a suitable hose-removal tool. Avoid kinking or damaging the hose. Next, identify any electrical connectors attached to the servo. These typically power the brake light switch integrated within the servo unit. Carefully disconnect these connectors by gently pressing the release tabs and pulling the connectors apart. Take note of their orientation to ensure correct re-connection later. Take a photograph of the connections and their positioning before you disconnect them if you are not confident remembering.
Supporting the Brake Servo
The brake servo can be somewhat heavy, and its sudden detachment could cause damage or injury. Before you proceed to remove any mounting bolts, use a suitable support to hold the servo in place. A sturdy jack stand or even a well-placed piece of wood can provide adequate support. Position the support so it cradles the unit and prevents it from falling unexpectedly. This is crucial to prevent the servo from dangling by its wires and potentially damaging its delicate components.
Removing the Mounting Bolts
Now, locate the bolts that secure the brake servo to the vehicle’s bulkhead or firewall. These are typically found on the sides and sometimes at the base of the unit. You will usually need a socket set and ratchet, possibly with extensions depending on access. Consult your vehicle’s repair manual for the correct bolt size and torque specifications. Remember to loosen the bolts gradually and evenly to avoid straining or damaging any components. Use a penetrating lubricant like WD-40 on stubborn bolts to aid removal. Once the bolts are sufficiently loosened, carefully remove them and keep them safely aside in a container to prevent loss or misplacement.
Careful Extraction of the Brake Servo Unit
With the support in place and the bolts removed, gently lower the brake servo using the support. This is a crucial step requiring patience and careful maneuvering. You may find that the servo is slightly tight against the bulkhead; take your time and gently wiggle it free. Avoid using excessive force that could damage surrounding parts such as vacuum lines, wiring harnesses, or the bulkhead itself. Pay attention to any brackets or clips that may still be holding the servo, and carefully release them. Sometimes, a small amount of corrosion can hinder the removal, making it feel stuck. If the unit is difficult to remove, try a gentle rocking motion or applying a lubricant to any areas that seem to be binding. Once free, carefully lower and remove the old brake servo, making sure not to strain any wires or vacuum hoses that remain connected. Remember to check for any remaining fasteners or brackets and carefully remove them. Inspect the area where the servo was mounted for any damage or debris and clean it before installing the new unit. Examine the surface the servo was attached to for any damage and repair any before proceeding further.
Tools Required
| Tool | Purpose |
|---|---|
| Socket set with various sizes | Removing mounting bolts |
| Ratchet | For efficient bolt removal |
| Extensions | To reach tight spaces |
| Jack stand or suitable support | To hold the servo securely |
| Penetrating lubricant (WD-40) | To loosen stubborn bolts |
| Hose removal tool (optional) | To aid in vacuum hose removal |
| Gloves | For protection |
Installing the New Brake Servo Unit
Preparing for Installation
Before you begin, ensure you have all the necessary tools and parts. This typically includes a new brake servo unit, new gaskets and seals (if not included with the servo), a suitable wrench set, screwdrivers (Phillips and flathead), possibly a torque wrench, and safety glasses. It’s also wise to have a clean workspace, ensuring you have plenty of room to maneuver comfortably. Consult your vehicle’s repair manual for specific torque specifications for all bolts and fasteners.
Disconnecting the Brake System
Safety is paramount. Begin by releasing the pressure from the brake system. This is crucial to prevent injury and brake fluid spillage. Consult your vehicle’s manual for the specific procedure. Typically, this involves gently depressing the brake pedal several times until it becomes firm, then locating and carefully opening the bleeder valve on each brake caliper to release any remaining pressure. Remember to have a catch container ready to collect the escaping brake fluid. Brake fluid is corrosive, so protect your paintwork and skin.
Removing the Old Brake Servo Unit
Once the brake system pressure is released, you can begin removing the old servo unit. This often involves disconnecting the vacuum hose from the servo, removing any electrical connectors, and unbolting the servo from its mounting bracket. Take photos or make detailed notes as you proceed, documenting the location of each component and the order of disassembly. This will be invaluable during reassembly. Remember to support the servo as you remove it to prevent it from dropping and potentially damaging any surrounding components.
Comparing Old and New Units
Before installing the new servo, take a moment to compare it to the old unit. Check for any noticeable differences. While they should be identical, occasional variations between manufacturers can exist. Ensure all mounting points align perfectly and that all hoses and electrical connectors are compatible. If you spot any inconsistencies, consult your vehicle’s repair manual or contact a qualified mechanic for assistance.
Installing the New Brake Servo Unit – Detailed Steps
With the old unit removed, carefully examine the mounting surface for any debris or damage. Clean it thoroughly with a suitable degreaser and a clean cloth. This ensures a secure and leak-free seal. Before installing the new brake servo, ensure all new gaskets and seals are correctly positioned. Refer to your vehicle’s manual or the new brake servo packaging for precise instructions. Often, a light coating of high-temperature silicone grease will help facilitate installation and prevent binding.
Carefully align the new brake servo with its mounting bracket. Hand-tighten all bolts before using your wrench to tighten them according to the manufacturer’s torque specifications (found in your vehicle’s repair manual). Avoid over-tightening, as this could damage the servo or its mounting bracket. Once the servo is securely fastened, reconnect the vacuum hose, making sure it is securely attached and not kinked. Reconnecting electrical connectors should be done carefully, ensuring a proper and firm connection. Double-check all connections before proceeding.
After fitting the new brake servo, carefully inspect your work. Look for any leaks around the vacuum hose or any other connections. A visual inspection is crucial at this stage. Before bleeding the brakes, gently depress the brake pedal a few times to ensure the pedal feels firm. Any excessive sponginess indicates a potential issue requiring further investigation. Thoroughly check for leaks again after bleeding the system. Always follow the instructions in your car’s manual for the proper bleeding procedure, using a suitable bleeder kit and a clean container for collecting the brake fluid.
| Step | Action | Important Considerations |
|---|---|---|
| 1 | Clean mounting surface | Remove all debris and use a degreaser. |
| 2 | Install new gaskets/seals | Refer to vehicle manual or servo packaging for correct placement. |
| 3 | Align and mount the new servo | Hand-tighten bolts before using a wrench. |
| 4 | Tighten bolts to correct torque | Refer to vehicle’s repair manual for specifications. |
| 5 | Reconnect vacuum hose and electrical connectors | Ensure secure connections and no kinks. |
| 6 | Check for leaks | Inspect all connections thoroughly. |
Bleeding the Brakes
After reinstallation, the brake system must be bled to remove any air that may have entered during the replacement process. This ensures proper braking performance and responsiveness. The bleeding procedure varies slightly depending on your vehicle’s brake system, so consult your owner’s manual for the correct method. Often, this involves opening the bleeder valve on each brake caliper while an assistant pumps the brake pedal. Be prepared to collect the escaping brake fluid. Always use fresh brake fluid of the correct type specified in your vehicle’s manual. Repeat this process until the brake fluid runs clear and free of air bubbles.
Testing the Brakes
Once the bleeding process is complete, test the brakes thoroughly in a safe, controlled environment, such as an empty parking lot. Start slowly and gradually increase speed, carefully feeling the brake pedal for responsiveness and firmness. If there’s any indication of spongy brakes or diminished braking power, you’ll need to revisit the bleeding process or investigate potential issues with the system. If unsure, consult a qualified mechanic for professional guidance.
Bleeding the Brake System
After installing a new brake servo, bleeding the brake system is crucial to remove any trapped air. Air in the brake lines significantly reduces braking effectiveness, leading to a spongy brake pedal and potentially dangerous driving conditions. Proper bleeding ensures the system is fully primed with brake fluid, restoring optimal braking performance.
Preparing for the Bleed
Before you begin, gather your necessary tools: a brake bleeder wrench (usually a 10mm or 11mm), a clear hose long enough to reach a container, a container to collect the old brake fluid, and a helper. It’s also wise to have clean rags handy to wipe up any spills. Remember that brake fluid is corrosive, so wear appropriate eye protection and gloves. Locate the bleeder valves on each brake caliper (usually found on the top or side) and the bleeder valve on the rear brake cylinders (if applicable).
Checking Brake Fluid Level
Before you start bleeding, ensure the brake fluid reservoir is topped up with fresh DOT 3, DOT 4, or DOT 5.1 brake fluid (check your vehicle’s manual for the correct type). Never let the reservoir run dry, as this can introduce air into the system. It is good practice to monitor the fluid level in the master cylinder reservoir throughout the bleeding process.
The Bleeding Process
The bleeding procedure typically involves opening the bleeder valve on one caliper at a time, while a helper pumps the brake pedal. This forces the fluid and any trapped air out of the line. The order in which you bleed the brakes is important. Generally, it’s recommended to start with the furthest wheel from the master cylinder (often a rear wheel), then move progressively closer. For example, a common order is rear passenger side, rear driver’s side, front passenger side, and finally, the front driver’s side.
Step-by-Step Bleeding Instructions
With your helper ready, attach the clear hose to the bleeder valve and submerge the other end in your container of brake fluid. Have your helper slowly pump the brake pedal several times. Then, have them hold the brake pedal down while you carefully open the bleeder valve with the wrench. Keep the valve open until you see clear fluid coming through the hose, free of any bubbles. Close the valve before your helper releases the brake pedal. Repeat this process until the fluid running through the hose is consistently clear and free of bubbles. Repeat this for each wheel, following the suggested order.
Troubleshooting
If you encounter difficulties, such as a sluggish response or continued air in the system, there are a few things you can try. Make sure the bleeder valve is clean and free from debris which can hinder its opening and closure. Ensure the brake fluid reservoir remains topped up during the process to avoid sucking in air. Using a pressure bleeder can significantly speed up the process and make it more effective, by maintaining consistent pressure in the system.
Specific Considerations for Brake Servo Replacement
Replacing a brake servo introduces a higher risk of air entering the system. Take extra care to ensure all connections are tight and free of leaks during reassembly. Before even commencing the bleed, it’s highly recommended to use a pressure bleeder. A pressure bleeder maintains consistent pressure within the braking system, ensuring efficient and complete removal of air, even in tricky-to-bleed areas. This minimizes the number of times your helper needs to pump the brake pedal and improves the chances of a successful bleed on the first try. Consider this a crucial step when working with a new servo to ensure a flawless brake system.
| Step | Action | Observation |
|---|---|---|
| 1 | Attach hose to bleeder valve | Ensure a secure fit to prevent leaks. |
| 2 | Helper pumps brake pedal | Observe pedal firmness; a soft pedal indicates air. |
| 3 | Open bleeder valve slowly | Watch for air bubbles in the fluid. |
| 4 | Close valve before pedal release | Prevents air from re-entering. |
| 5 | Repeat until clear fluid flows | Clean fluid denotes a successful bleed. |
Remember, if you are unsure about any part of this process, it’s always best to consult a qualified mechanic.
Reconnecting the Battery and Performing a Test Drive
Reconnecting the Battery
After completing the brake servo replacement, it’s crucial to reconnect the battery correctly. A simple oversight here could lead to further complications or even damage to the vehicle’s electrical system. Before you begin, ensure the new servo is securely mounted and all related components, such as vacuum lines and electrical connectors, are properly attached. This careful attention to detail will prevent any issues later on.
First, locate your battery’s positive (+) and negative (-) terminals. They’re usually clearly marked. Using the appropriate wrench size, carefully loosen the terminal clamps. Remember, the order of disconnection is usually negative first, then positive, to avoid accidental short circuits. Reverse this process when reconnecting.
Clean the battery terminals with a wire brush to remove any corrosion. This ensures a good electrical connection, minimizing the risk of voltage drops or unexpected starting problems. Once clean, firmly attach the positive clamp to the positive terminal, followed by the negative clamp to the negative terminal. Ensure they are securely fastened to prevent any loose connections.
Performing a Test Drive
With the battery reconnected, it’s time for a crucial step: a thorough test drive. This isn’t just a quick spin around the block; it’s a chance to verify the effectiveness of your brake servo replacement and identify any potential lingering problems.
Pre-Drive Checks
Before starting the engine, perform a quick visual inspection of the brake system. Ensure all brake fluid lines are securely connected and there are no leaks. Check the brake pedal for any unusual looseness or sponginess. While a slight amount of give is normal, excessive travel indicates a potential problem that needs addressing before driving.
The Test Drive Itself
Start the engine and gently press the brake pedal several times. You should feel a firm, consistent response. Avoid any hard braking initially; a gentle approach allows you to gauge the brake system’s responsiveness. Gradually increase braking pressure as you feel more confident. Pay close attention to any unusual sounds, vibrations, or changes in pedal feel.
Next, proceed to perform a series of controlled braking maneuvers at various speeds. This allows you to asses the effectiveness of the braking system across different conditions. Test your stopping power on open road, paying close attention to your ability to stop within a reasonable distance. Be sure to perform several stops to fully assess the performance. Always prioritize safety and choose a safe, quiet location for your test.
Post-Drive Inspection
After completing your test drive, inspect the brake system once more, paying close attention to the brake fluid reservoir. If there’s a significant drop in fluid level, it could indicate a leak somewhere in the system, necessitating immediate attention. If everything checks out, your brake servo replacement is complete!
Troubleshooting Potential Issues
If you notice any issues during the test drive, such as a spongy brake pedal, pulling to one side, or unusual noises, immediately stop driving and investigate further. It’s best to consult a qualified mechanic to diagnose and rectify the problem rather than risk further damage.
| Possible Issue | Likely Cause | Solution |
|---|---|---|
| Spongy brake pedal | Air in the brake lines, faulty master cylinder, or worn brake pads | Bleed the brakes, replace the master cylinder, or replace brake pads |
| Pulling to one side during braking | Uneven brake pad wear, a seized caliper, or a problem with the brake lines | Replace brake pads, repair or replace the caliper, or repair the brake lines |
| Unusual noises during braking | Worn brake pads, a faulty caliper, or damage to the brake rotors | Replace brake pads, repair or replace the caliper, or resurface or replace brake rotors |
Checking for Leaks
Visual Inspection
Before even thinking about touching a wrench, a thorough visual inspection is key. Look closely at the brake servo unit itself. Check all connections, particularly the vacuum hose linking it to the intake manifold. Look for any signs of wetness, discoloration (dark stains often indicate brake fluid leaks), or cracks in the casing. Even small hairline fractures can lead to significant problems down the line. Pay close attention to the area where the servo attaches to the brake master cylinder; a leak here could indicate a failing seal. Don’t forget to examine the surrounding area for evidence of fluid spillage—a telltale sign of a previous leak or a currently active one.
Vacuum Hose Inspection
The vacuum hose is a critical component. Carefully examine its entire length for any cracks, kinks, or areas of significant wear. A compromised hose will lead to a loss of vacuum assist, resulting in a spongy or unresponsive brake pedal. Check the hose clamps at both ends—ensure they are securely fastened and not corroded. A loose clamp can allow air leakage, negating the servo’s function. If you detect any damage, replacement is necessary. Use only high-quality, specifically designed vacuum hose to maintain proper functionality.
Ensuring Proper Functionality
Brake Pedal Feel Test
A simple yet effective test involves feeling the brake pedal. Start the engine and gently depress the brake pedal several times. A firm, consistent pedal indicates a healthy servo. A soft, spongy, or low pedal might suggest a vacuum leak within the servo or the vacuum system. If the pedal feels unusually hard to depress, it could mean the servo is malfunctioning or there’s a problem elsewhere in the braking system, requiring further investigation.
Vacuum Test
A more precise way to check for vacuum leaks is to use a vacuum gauge. Connect the gauge to the vacuum port on the servo. With the engine running, the gauge should read a strong vacuum (typically between 18 and 22 inches of mercury, although this can vary depending on the vehicle). A significantly lower reading, or a fluctuating reading, indicates a leak somewhere in the system, likely within the servo, the hose, or the intake manifold connection. If you don’t have a vacuum gauge, a visual inspection with soapy water applied to the hose connections and the servo may help detect small leaks.
Testing Brake Assist
With the engine running, gently press the brake pedal. You should feel a noticeable assist. If the assist is weak or absent, the servo may not be working correctly. Compare this to the brake pedal feel with the engine off. The difference in feel should be substantial. If the difference is minimal or nonexistent, this strongly points towards a servo or vacuum system issue.
Advanced Diagnostic Checks
For more in-depth diagnosis, you may need a professional scan tool capable of reading brake system data from your vehicle’s computer. This allows for the detection of any fault codes related to the servo or vacuum system. These codes can pinpoint the exact nature of the problem, facilitating more targeted repairs. While professional tools are highly beneficial for complex issues, a careful visual inspection and the simple tests described above can often identify the root cause of most servo problems.
Table of Common Brake Servo Problems and Causes
| Problem | Possible Cause |
|---|---|
| Spongy brake pedal | Vacuum leak in hose, servo, or intake manifold connection |
| Hard brake pedal | Servo malfunction, master cylinder issue, or low brake fluid |
| No brake assist | Failed servo, vacuum leak, or faulty vacuum pump (if equipped) |
| Brake fluid leak | Damaged servo seals, cracked servo casing, or loose connections |
Comprehensive System Evaluation
Before replacing the brake servo, it’s crucial to rule out other potential causes for braking problems. Issues within the master cylinder, brake lines, calipers, or ABS system can mimic symptoms of a faulty servo. A comprehensive system check, potentially involving pressure testing the brake lines and inspecting other components, is advisable to prevent unnecessary component replacement. Remember, the brake system is critical for safety; if you are unsure about any step, consult a qualified mechanic.
Post-Installation Inspection and Maintenance Recommendations
Initial Brake System Inspection
After fitting the new brake servo, a thorough inspection is crucial. This isn’t just a quick check; it’s a systematic process to ensure the entire braking system is functioning optimally and safely. Begin by visually examining all connections – ensuring hoses are correctly secured, no leaks are present, and all electrical connectors are firmly attached and undamaged. Pay close attention to the vacuum hose connecting the servo to the intake manifold; a poorly connected or damaged hose can lead to significant braking problems.
Brake Pedal Feel Test
Next, carefully test the brake pedal feel. Press the pedal firmly several times. You should experience a firm, consistent resistance, without any spongy or soft feeling. A soft pedal indicates a possible air leak within the system, requiring immediate bleeding. Excessive hardness suggests the servo may be over-boosting or another problem exists. Document pedal travel – the distance from the top to the floor – for future comparison.
Bleeding the Brakes
Bleeding the brakes is essential after any brake system work, including servo replacement. This removes any air that may have entered the system during the installation process. Air in the brake lines significantly reduces braking effectiveness and can lead to dangerous situations. Follow the manufacturer’s recommended bleeding procedure meticulously, typically starting with the furthest wheel from the master cylinder and working your way closer. This ensures that all air is expelled efficiently.
Road Test and Observation
A short road test under various conditions is crucial. Start with slow, controlled braking in a safe, empty area to assess the pedal feel and responsiveness. Gradually increase speed and braking force, noting any unusual behaviour such as pulling to one side, vibration, or inconsistent braking power. Pay particular attention to braking at different speeds; inconsistencies could signal a problem.
Leakage Check
After the road test, thoroughly inspect the brake system again for any signs of leakage. Look for wet spots on the floor under the vehicle, near the wheels, and around the master cylinder and servo unit. Even a small leak can dramatically reduce braking performance. Use clean rags or paper towels to wipe down suspect areas and look for any signs of brake fluid.
Vacuum System Check
The brake servo relies on engine vacuum to assist braking. A faulty vacuum pump or leaks in the vacuum system can drastically impair braking performance. Check the vacuum hose for cracks or damage and ensure it’s securely connected. A vacuum gauge can be used to measure the vacuum level at the servo inlet – consult your vehicle’s service manual for the correct specifications.
Regular Fluid Level Checks
Maintain a regular schedule to check the brake fluid level in the master cylinder reservoir. Low brake fluid indicates a leak somewhere in the system and needs immediate attention. Never let the fluid level fall below the minimum mark. Brake fluid absorbs moisture over time, which can damage the system’s components; consider a complete brake fluid flush and refill at recommended service intervals.
Long-Term Maintenance and Considerations (Detailed)
Understanding Brake Servo Lifespan
Brake servos, like other vehicle components, have a finite lifespan. While they can last for many years, various factors can affect their longevity. These include driving habits (frequent harsh braking), environmental conditions (extreme temperatures and humidity), and the quality of the brake fluid used. Regular maintenance greatly extends their lifespan. Always refer to your vehicle’s service schedule for recommended inspection intervals.
Signs of Brake Servo Failure
Recognising the signs of impending brake servo failure is critical for safety. Common indicators include a spongy or soft brake pedal, increased pedal travel, noticeable reduction in braking effectiveness (requiring more pedal effort to stop), unusual noises (whining or groaning sounds) from the servo area, or brake warning light illumination. Any of these necessitate immediate inspection by a qualified mechanic. Ignoring these signs could result in dangerous brake failure.
Preventative Maintenance Techniques
Preventative maintenance is key to prolonging the life of your brake servo and the entire braking system. This involves regular inspection of the vacuum hose for cracks or leaks, checking brake fluid levels regularly, and ensuring the brake fluid is fresh and free from contamination. Professional brake fluid flushes and changes according to the manufacturer’s recommendation are also essential. Driving smoothly and avoiding harsh braking contributes significantly to the longevity of the brake servo and other components.
Component Compatibility
When replacing a brake servo, ensure the replacement part is fully compatible with your vehicle’s make, model, and year. Using an incorrect part can lead to poor performance, safety issues, or even damage to other braking system components. Always source parts from reputable suppliers and consult your vehicle’s service manual or a qualified mechanic for guidance if unsure about compatibility.
Documentation and Records
Maintain a comprehensive record of all brake system maintenance and repairs, including the date of servo replacement, details of any inspections and road tests, and notes on any issues encountered. This detailed record is invaluable should any problems arise later and assists in future servicing and diagnostics.
| Maintenance Task | Frequency | Notes |
|---|---|---|
| Brake Fluid Level Check | Monthly | Check fluid level in the master cylinder reservoir; top up if necessary. |
| Brake Fluid Flush & Replacement | Every 2 years or as per manufacturer’s recommendation | Essential for removing moisture and contaminants. |
| Brake System Inspection (visual) | Every 6 months or 6000 miles | Check for leaks, hose condition, and any signs of damage. |
| Comprehensive Brake System Service | Every 2-3 years or as per manufacturer’s recommendation | Professional inspection and potential component replacement. |
Replacing a Brake Servo: A Professional’s Perspective
Replacing a brake servo is a complex procedure that should only be undertaken by individuals with significant mechanical aptitude and experience working on braking systems. Improper installation can lead to compromised braking performance, resulting in dangerous and potentially fatal consequences. It is strongly recommended that this task be entrusted to a qualified mechanic at a reputable automotive repair facility. However, for those with the necessary expertise and access to specialized tools, the following considerations are crucial.
Before commencing any work, it is paramount to consult the vehicle’s repair manual. This document provides detailed instructions specific to the make and model, including critical torque specifications and component locations. Safety should be the absolute priority. The vehicle must be properly secured, the battery disconnected, and appropriate personal protective equipment (PPE), including safety glasses and gloves, should be worn throughout the process. Thoroughly bleed the brake system after the installation, ensuring complete removal of air from the lines to restore optimal braking efficiency. Post-installation, a professional brake system test should be performed to confirm proper function and to check for leaks.
The process typically involves disconnecting the brake lines, vacuum pipe, and push rod linkage to the master cylinder. Careful observation and labeling are essential to ensure correct reassembly. The servo’s mounting bolts must be carefully removed, and the unit replaced with a new, correctly specified part. This requires precision and care to avoid damage to surrounding components. The new servo should be installed and securely fastened, adhering strictly to the manufacturer’s specifications and torque recommendations. Any damaged or worn components should be replaced during the repair to prevent future issues.
People Also Ask About Replacing a Brake Servo
Can I replace a brake servo myself?
Risks and Recommendations
While technically possible for experienced mechanics, replacing a brake servo is highly discouraged for DIY enthusiasts. The braking system is critical for safety; incorrect installation can lead to brake failure. The complexity of the process, requiring specialized tools and precise knowledge, makes professional assistance the safest and most reliable option. The risks associated with a faulty repair far outweigh any potential cost savings from attempting the repair yourself.
How much does it cost to replace a brake servo?
Cost Factors
The cost of replacing a brake servo varies widely depending on factors such as vehicle make and model, labor rates in your area, and the cost of the replacement part. It’s prudent to obtain multiple quotes from reputable mechanics to compare pricing. Expect the total cost to include the price of the servo, labor charges for the replacement, and any necessary additional repairs or fluid flushes.
How long does it take to replace a brake servo?
Time Required
The time required to replace a brake servo can range from a few hours to a full day, depending on the vehicle’s design and the mechanic’s experience. Access to the servo can vary considerably between vehicle models, potentially adding to the complexity and duration of the repair. A professional mechanic will provide an estimated timeframe based on the specific circumstances.
What are the signs of a bad brake servo?
Symptoms of Failure
A failing brake servo often presents itself through symptoms such as a noticeably harder brake pedal, reduced braking effectiveness, a spongy brake pedal feel, unusual noises from the braking system, or a vacuum leak. If any of these issues are observed, professional inspection is strongly recommended to determine the cause and prevent potential safety hazards.
